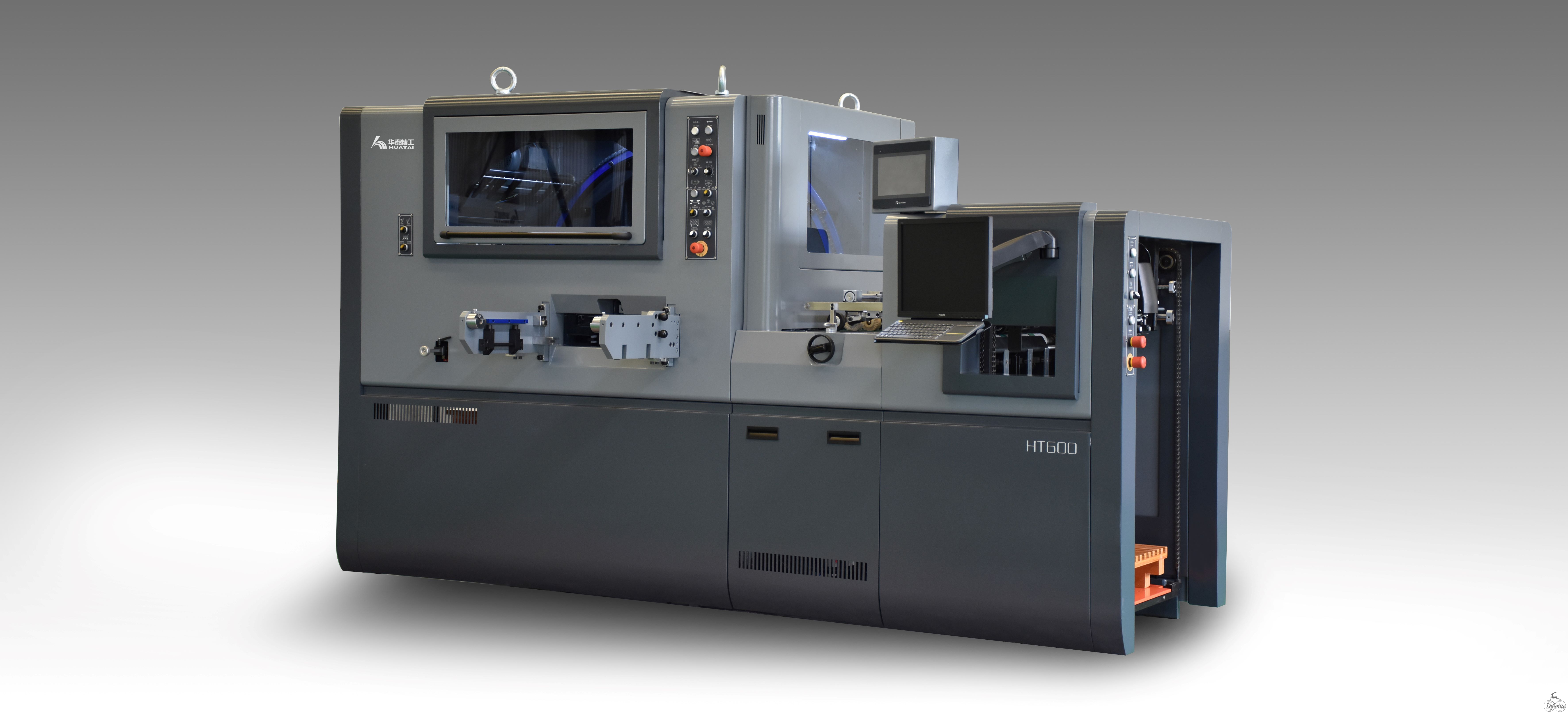

HUATAI HT600T
Specifications: Maximum Sheet Size 600X420mm Minimum Sheet Size 280X180mm Maximum Die Cutting Size 590*410mm Die Cutting Precision ±0.075mm Max Feeding Pile Height (incl.pallet) 900mm Max Delivery Pile Height (incl.pallet) 800mm Inside Chase Size 600*430mm Die Cutting Plate Size 600*420mm Height of Cutting Rules 23.8mm Min.Gripper Margin 9mm First Cutting Rule 8-16mm Max Die cutting Pressure 180tons Sheet Thickness 80g/㎡ to E flute corrugated paper ≤4mm Maximum Die Cutting Speed 10000 s/h Maximum Foil Stamping Speed 9000 s/h Dimensions L3166*W1890*H1855mm Total power of motors 22KW Gross weight 6000KG
Bouwjaar: 2024
Meer weten? Laat uw e-mail achter en we nemen binnen 1 werkdag contact met u op.
